Introduction

In this section, KarZah provides its customers with an explanation of types and uses of two of the important blockwork accessories: Block Ladders and Corrugated Angels. We also include the description of major plaster accessories: Metal Lath, Angel Beads, Plaster Stop Beads, Plaster Architrave Beads, Plaster Movement Beads, Plaster Control Joint Beads and High-Rib Lath.

We need to use metallic building accessories in construction to cope with changes in weather and other natural conditions. Changes in temperature, humidity, winds and in some areas, earthquakes have adverse effect on building age. On the other hand, using plastering accessories allow us support and strengthen cement plaster where different building elements meet. This increases plaster cohesion and prevents cracks forming in building plaster.

Plaster Crack
Plaster Crack
Plaster Crack
Plaster Crack
Plaster Crack
Plaster Crack



Blockwork Accessories

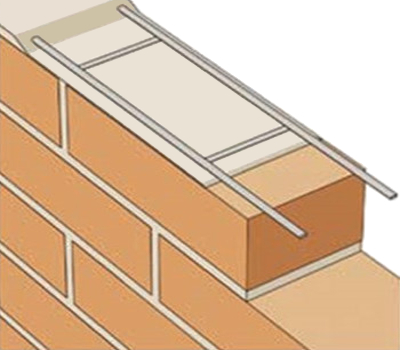

1. Block Ladders
  • Block ladders are used to tie blocks together
  • They are made of smooth or deformed reinforcement steel bars, and it usually comes in 4 mm diameter. It could be painted, mill galvanized, and hot-dip galvanized.
  • They can be manufactured from stainless-steel 4 mm diameter stainless steel bars, too. However, this type needs to be preordered.
  • They are used in all types of buildings: Residential, commercial, medical, military, educational and other building and facility types.
  • Available Sizes: Block ladders are available in a standard length of 3 meters. They are manufactured in different widths (5 cm for 10 cm wide blocks, 10 cm for 15 cm wide blocks, 15 cm for 20 cm wide blocks and 20 cm for 25 cm wide blocks).
  • Unless otherwise specified by consultants, block ladders are often installed every two block vertical lines or maximum three layers to increase blocks unity.



Block Ladder
Block Ladder
Block Ladder
Block Ladder

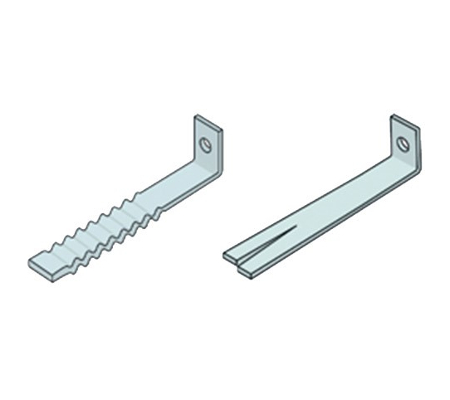

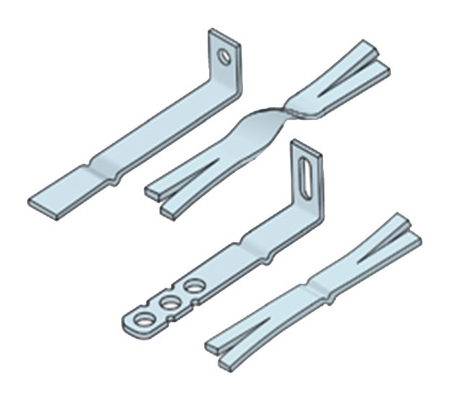

2. Block Angles/Corrugated Angles
  • Manufacturers make block angles and other block wall ties from galvanized sheets, stainless steel sheets, or even from round steel rods.
  • Block angles are steel angles whose angle is straight. to increase friction.
  • Sometimes these ties come a fishtail on one side and holes on the other.
  • They connect block walls to concrete columns or to steel beams or connect block walls to concrete walls. This results in increasing stability of connecting building elements.



Block Accessories
Block Accessories
Corrugated Angle
Corrugated Angle
Wire Block Accessories
Wire Block Accessories



Plastering Accessories

Plastering accessories are made of galvanized steel coils, which can come in various thicknesses. These coils are cut into sheets of standard lengths. Straight slit-cuts of certain lengths are then made in these plates with specific vertical and horizontal and spacing in between them. In the last stage, the plates are stretched from both ends to form spaces in the form of a metal mesh, whose holes having rhombus shape.

Plastering accessories are fixed using steel nails of approximately 3 cm long with a galvanized or stainless-steel washer. During installation, the mesh part of the plastering accessory must be completely stretched. The mesh is fixed every 20 to 25 cm. The installer should distribute the mesh evenly over the space between the different building elements in both directions. Finally, apply a good layer of cement mixture over the mesh and ensure that there are no voids behind the mesh.

We recommend using a drill machine or a nail gun when installing the mesh part and not to use a hammer. The mesh, the washer, and the nail shall be of galvanized metal or stainless steel.

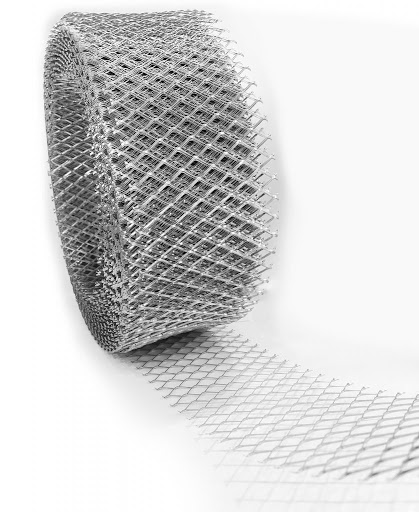

1. Expanded Metal Lath/Metal Mesh:
Shapes and Dimensions
  • Metal lath is manufactures in coils and in sheets.
  • It comes in different widths 10, 15, 20, 30 and 60 cm.
  • It comes in different coil lengths 10, 12, 15, 20, or 30 m. Variation in type and size allows customers to purchase the product according to their needs and project requirements.
Area of Use
  • It can be installed over electrical piping or plumbing piping areas.
  • When two different building elements meet together, like the area between block walls and building concrete elements.



Expanded Metal Lath
Expanded Metal Lath
Expanded Metal Lath
Expanded Metal Lath
Expanded Metal Lath
Expanded Metal Lath

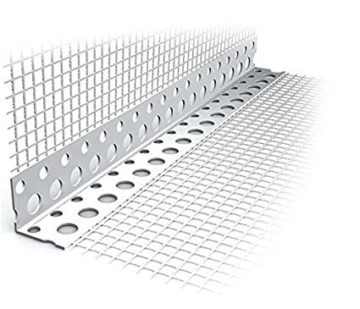

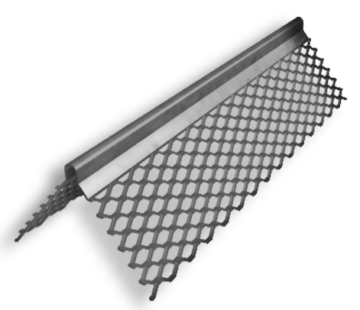

2. Corner Beads/Angle Beads
Corner Bead Sizes
  • Angle beads are available in two sizes 50×50 mm and 70×70 mm, and with several lengths ranging from 2700-3000 mm.
Area of Use
  • Internal and external corners in indoor or outdoor building walls.



Corner Beads
Corner Beads
Corner Beads
Corner Beads
Corner Beads
Corner Beads

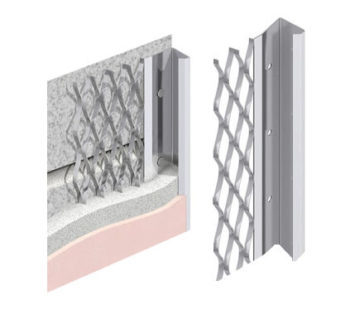

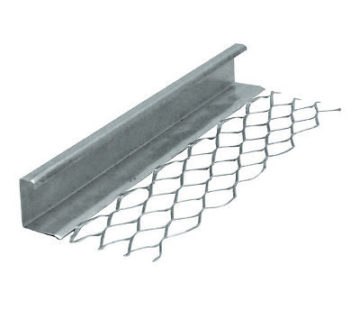

3. Plaster Stop Beads
Purpose of Use
  • To ensure perfect straightness of plaster edge.
  • To guarantee that plaster edge is protected against damage, shrinking cracks, and breakage.



Plaster Stop Beads
Plaster Stop Beads
Plaster Stop Beads
Plaster Stop Beads

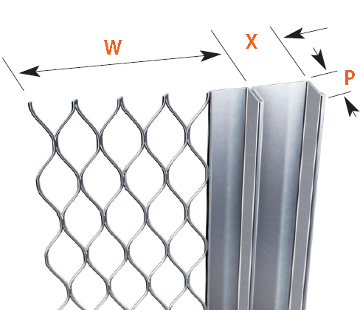

4. Plaster Architrave Beads

We usually use this type of plastering accessories for decoration purposes, where it fills a space or a gap (buried) inside a wall to separate between the first wall plaster and the next wall plaster.

Plaster Architrave Beads
Plaster Architrave Beads
Plaster Architrave Beads
Plaster Architrave Beads

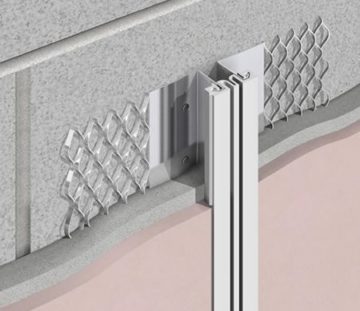

5. Plaster Movement Beads

We install this type pf beads to prevent movement between two plaster surfaces at expansion joints.

Plaster Movement Beads
Plaster Movement Beads
Plaster Movement Beads
Plaster Movement Beads



6. Plaster Control Joint Beads

We use this control joint bead when there is a time lapse on plastering work of the same surface. This control bead helps the two plaster areas to hold together after drying.

Plaster Control Joint Beads
Plaster Control Joint Beads
Plaster Control Joint Beads
Plaster Control Joint Beads

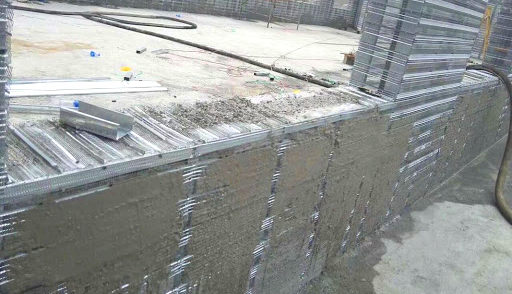

7. High Rib Lath

We use this type of plastering accessories to reinforce plastering work on ceilings, walls and floors as well. When the back surface is not supported by a whole



structure, high rib laths can work very well as a fake

plaster surface.



High rib laths are used also to reinforce raft slab foundations walls, I-beams, low straight bridges or bent bridges. Additionally, they are used as a separation between two huge concrete slab foundations, constructed at different time interval.

High Rib Lath
High Rib Lath
High Rib Lath
High Rib Lath
High Rib Lath
High Rib Lath
